‹ Home › Inventory › 2023 Harley-Davidson® Road Glide® FLTRX

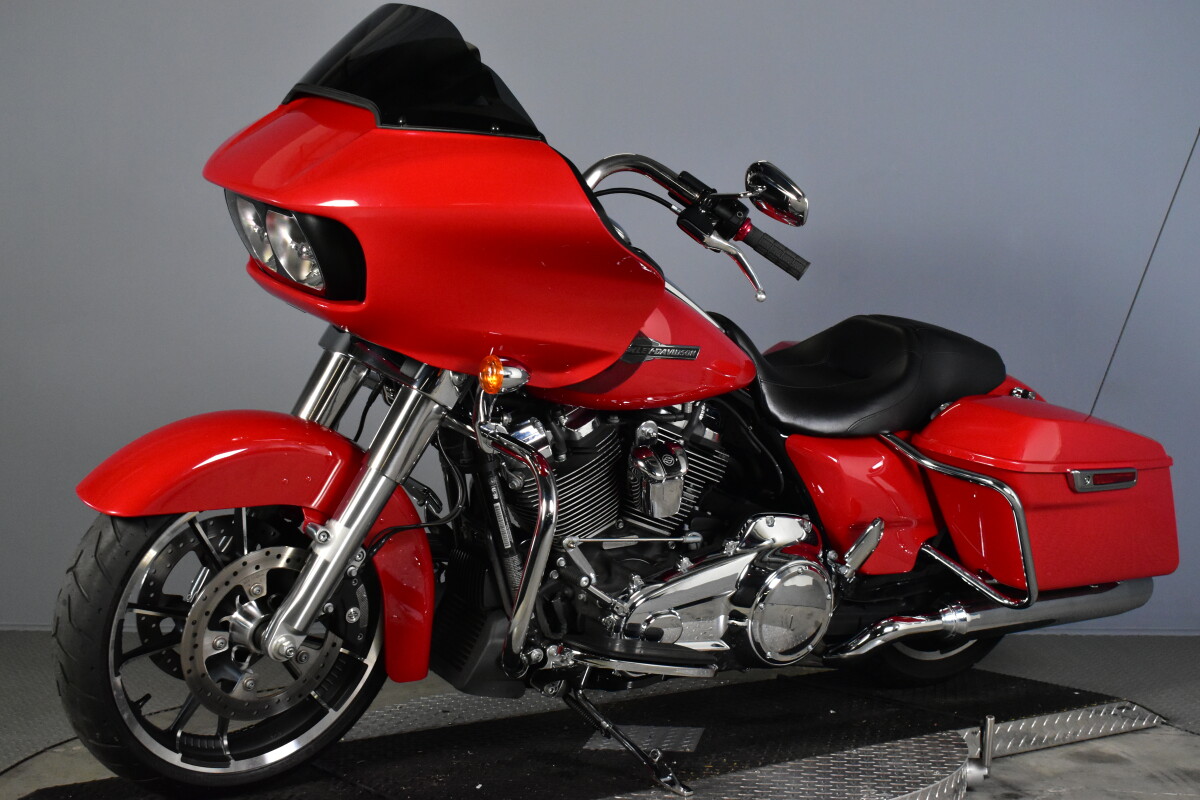

The menacing dual Daymaker™ Reflector LED headlamps in this used Road Glide® motorcycle’s shark-nose fairing are a familiar sight on the highway. It’s the machine of choice for hard-charging riders. You get Milwaukee-Eight® 107 (1745cc) power, with only 2184 easily adjustable emulsion rear suspesion and responsive front suspension, and the confidence of Reflex™ linked Brembo® brakes, comes with Hart Luck grips. Crank the tunes on the BOOM! ™ GTS infotainment OE and lay down some serious miles of your own.

Specifications

Dimensions

add remove
- Length:

  95.7 in
- Ground clearance:

  5.5 in
- Rake (steering head):

  26
- Trail:

  6.8 in
- Wheelbase:

  64.0 in
- Tires, front specifications:

  130/60B19 61H
- Tires, rear specifications:

  BW 180/55B18 80H
- Fuel Capacity:

  6.0 gal
- Oil capacity:

  5.2 qt.
- Weight, as shipped:

  820 lbs
- Weight, in running order:

  855 lb
- Luggage capacity – volume:

  2.3 cu ft (0.064 m3)
Engine

add remove
- Engine:

  Milwaukee-Eight® 107
- Bore:

  3.9 in
- Stroke:

  4.4 in
- Displacement:

  106.55 in³
- Compression ratio:

  10.0:1
- Fuel system:

  Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust:

  Chrome, 2-1-2 dual exhaust with tapered mufflers
Performance

add remove
- Engine torque testing method:

  J1349
- Engine torque:

  109.2 ft-lb
- Engine torque (RPM):

  3000
- Lean angle, right (deg.):

  31
- Lean angle, left (deg.):

  29
- Fuel economy testing method:

  Estimated City/Hwy
- Fuel economy:

  42.8 mpg (5.5 l/100km)
Powertrain

add remove
- Primary drive:

  Chain, 34/46 ratio
- Gear ratios (overall) 1st:

  9.593
- Gear ratios (overall) 2nd:

  6.65
- Gear ratios (overall) 3rd:

  4.938
- Gear ratios (overall) 4th:

  4
- Gear ratios (overall) 5th:

  3.407
- Gear Ratios (overall) 6th:

  2.875
Chassis

add remove
- Wheels, front type:

  Enforcer II Cast Aluminum
- Wheels, rear type:

  Enforcer II Cast Aluminum
- Brakes, caliper type:

  32 mm, 4-piston fixed front and rear
Electric

add remove
- Lights (as per country regulation), indicator:

  High beam, running lights, directional lights, low oil pressure, neutral, engine diagnostics, battery, cruise control, speakers, accessory, security system, gear indication, low fuel warning, ABS (if equipped), miles to empty display, fog/aux lamp indicat
- Gauges:

  Gauges styled to complement each vehicle. Display features odometer, trip A, trip B, range to empty and gear indicator; and larger tell-tale indicators.
Infotainment

add remove
- Infotainment system:

  Boom!™ Box 4.3
- Type:

  Color
- Watts per channel:

  25
- Speakers:

  2
- Speaker size:

  5.25 inch standard
- Headset specifications (if equipped):

  16-64 ohms
- AM:

  Standard
- FM:

  Standard
- Weather Band (WB):

  Standard
- SD Card, Flash Drive and MP3 — via USB Connection:

  Supported
- Sirius^XM Presets:

  20 - P&A Upgrade for Boom! Box GTS (USA & Canada only)
- Languages:

  English (US/UK)German Spanish (Mexico/Spain)French (Canada/France)Italian Portuguese (Portugal/Brazil)Russian Czech Polish Dutch Turkish Japanese
- Hands-free mobile phone — via Bluetooth:

  Standard
- Voice Recognition Languages: Phone functions only:

  Phone dependent
- Voice Recognition Languages: Tuner / Media / Navigation:

  Phone dependent
- Text-to-Speech (TTS) languages:

  Phone dependent
- Vehicle information screen:

  Standard
- USB:

  USB/MTP/iPod/iPhone
- Bluetooth:

  Phone/Media Supported
