Pan America® 1250 Special Pan America® 1250 Special

2026

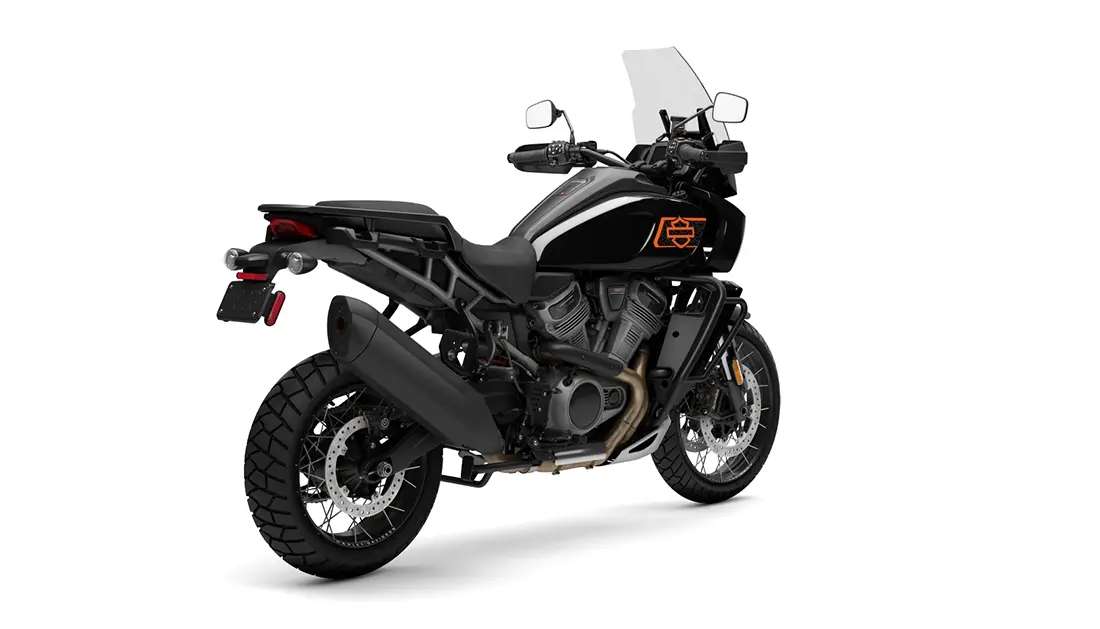

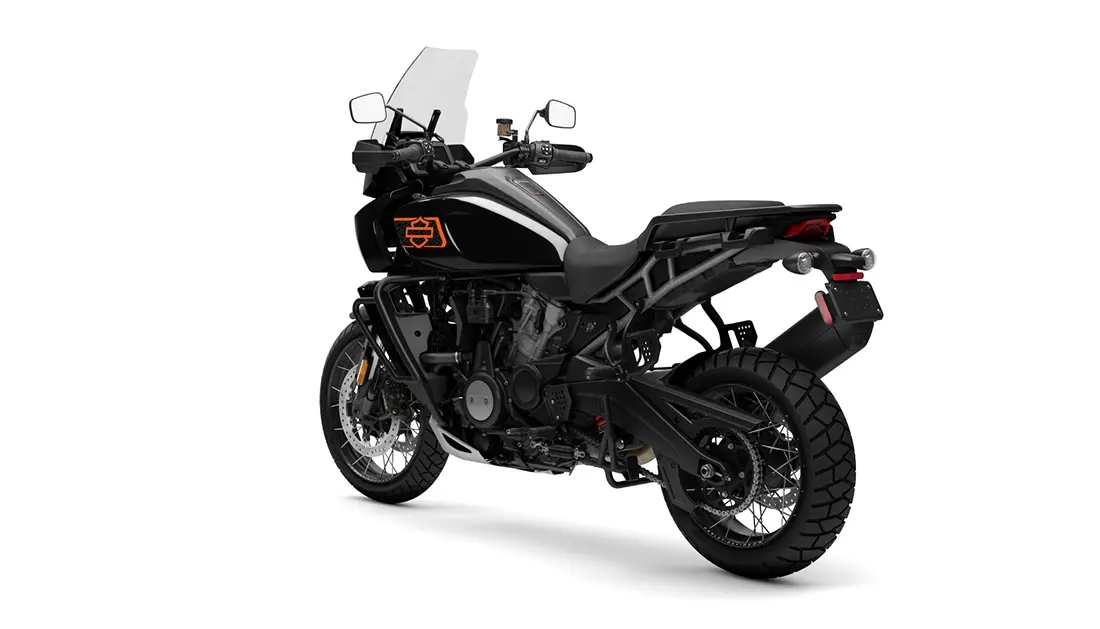

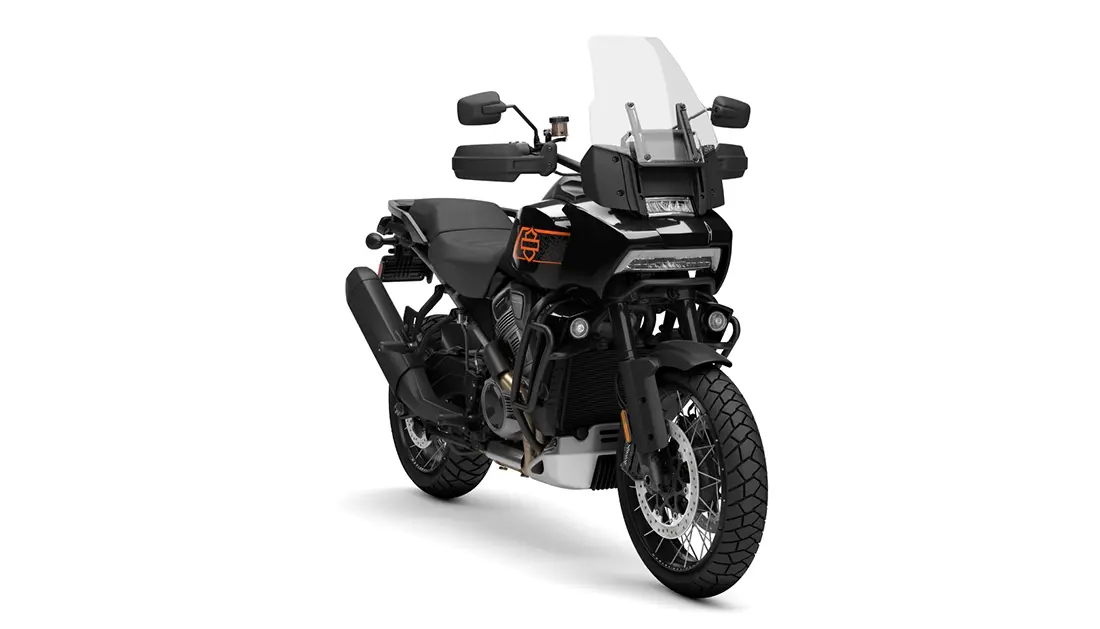

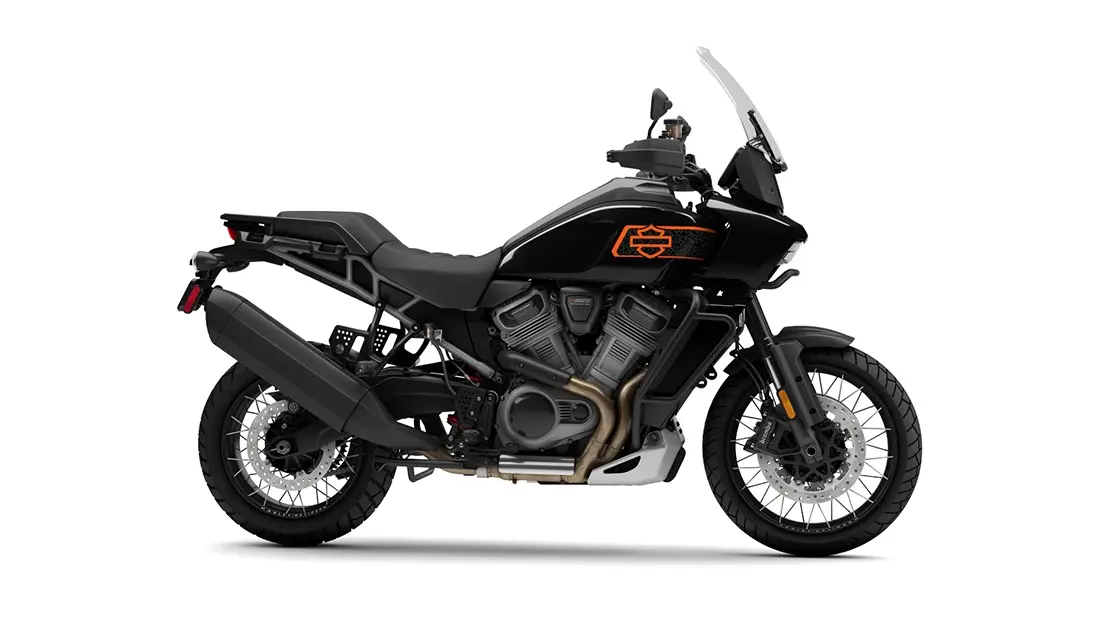

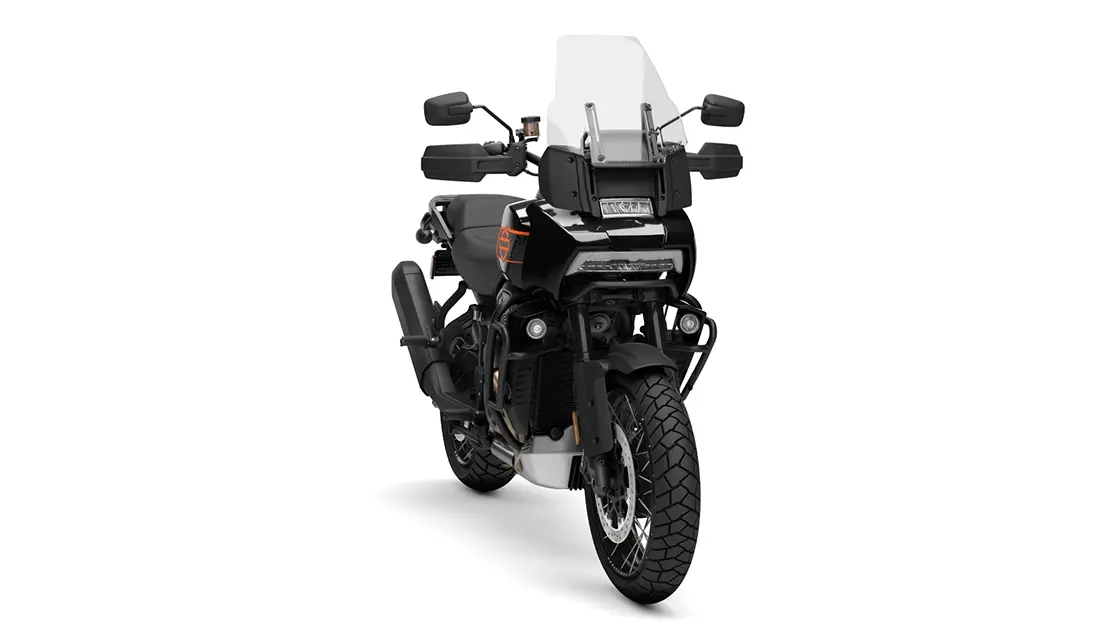

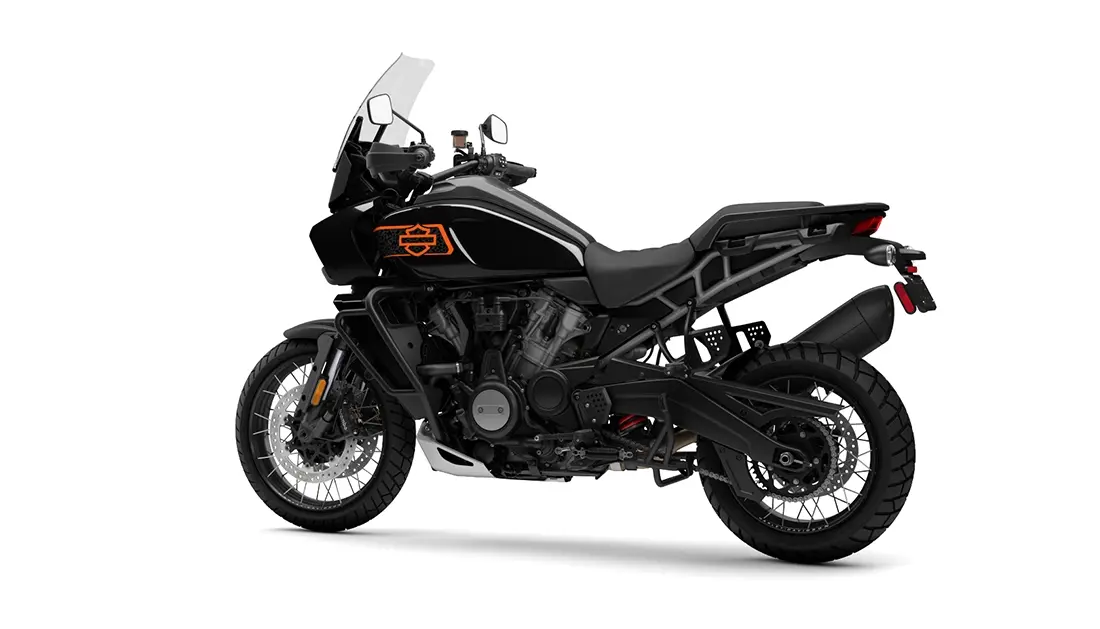

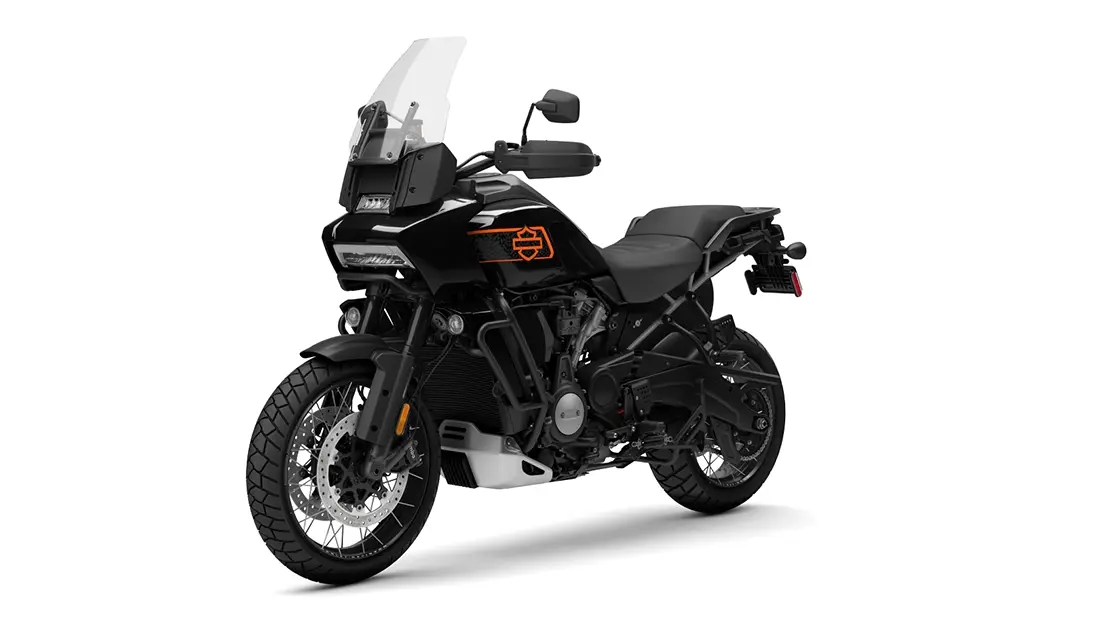

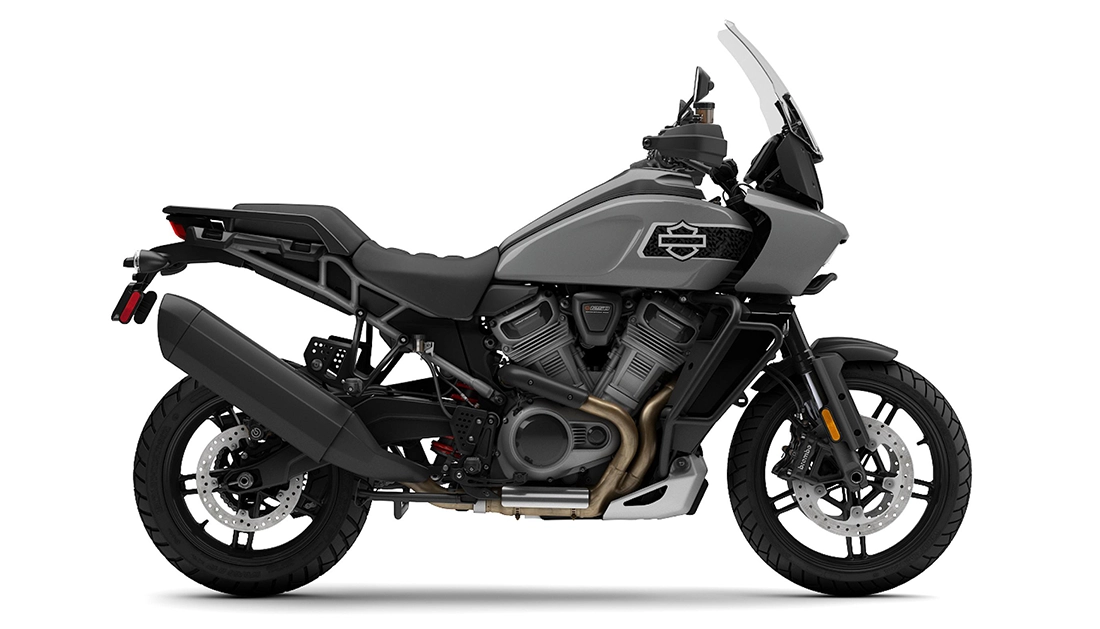

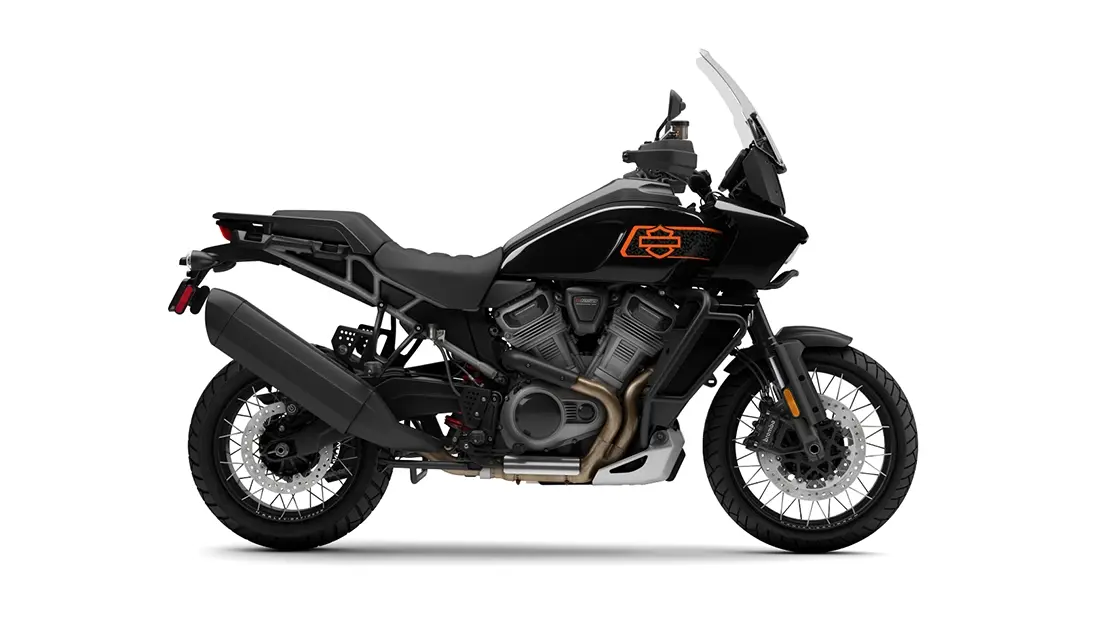

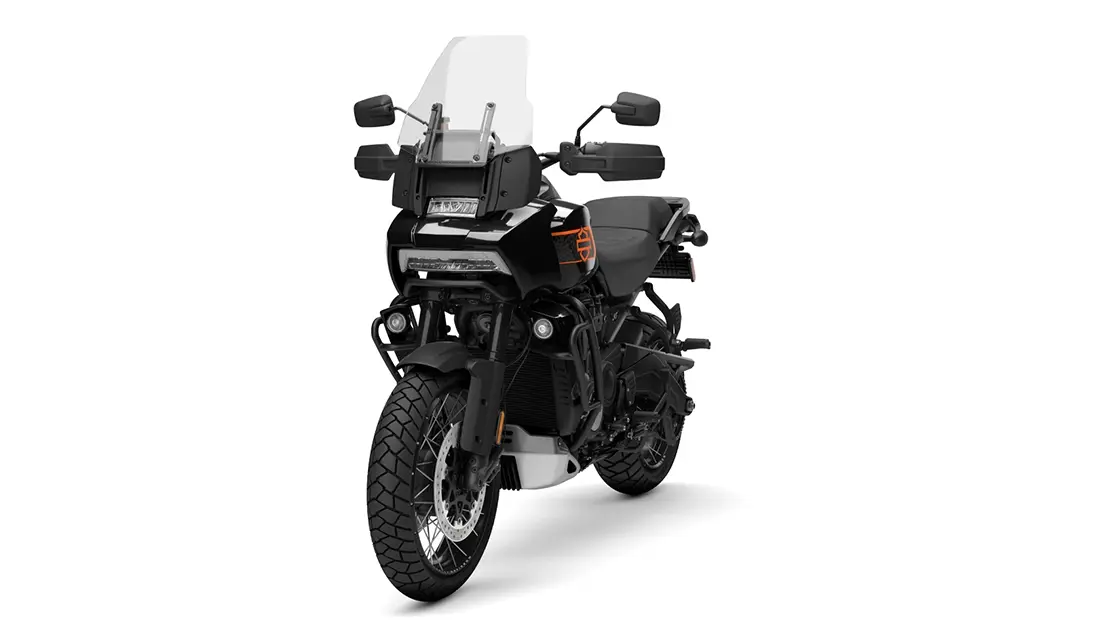

Pan America® 1250 Special

2026 Pan America® 1250 Special

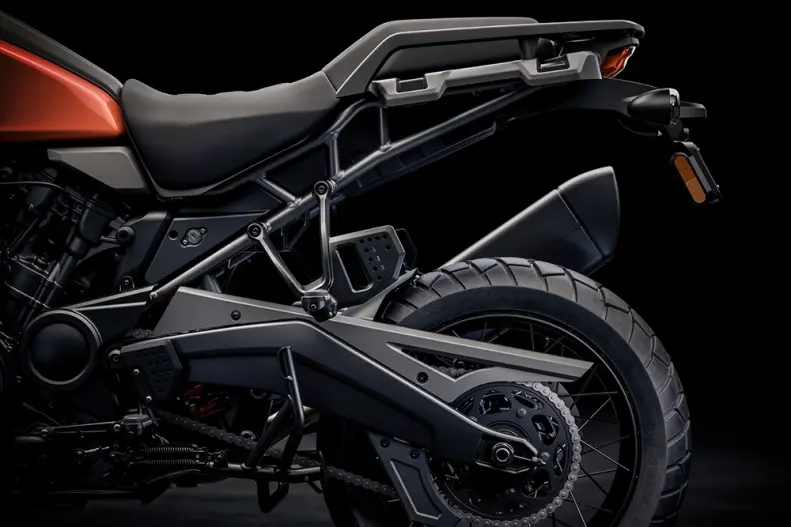

From city slab to backcountry rock, the Pan America 1250 Special delivers 150 hp of adaptable power at the flick of the throttle, in a package that weighs less than 570 lbs. With Adaptive Ride Height, Rider Safety Enhancements, and a 6.8” touchscreen display all standard, it’s packed with tech and built to take you wherever you want to go, even if the road doesn’t.

Pan America® 1250 Special
Disclaimer: Vehicle shown may vary visually by market and may differ from vehicles manufactured and delivered. Availability may vary by market, please see your local dealer for details.

Specifications

  • Pricing
    add remove
    • Base MSRP
      $19,999
    • Vivid Black
      $350
    • Solid Color
      $525
    • Wheel Option
      $1,050
    • California Emissions
      $200
    • Freight
      $730
    • Optional Adaptive Ride Height
      $1,250
  • Dimensions
    add remove
    • Length
      89.4 in
    • Ground clearance
      6.9 in
    • Rake (steering head)
      25
    • Trail
      4.3 in
    • Wheelbase
      62.4 in
    • Tires, front specifications
      120/70R19 60V
    • Tires, rear specifications
      170/60R17 72V
    • Fuel Capacity
      5.6 gal
    • Oil capacity
      4.75 qt.
    • Weight, as shipped
      542 lbs
    • Weight, in running order
      578 lb
    • Tire, type
      Michelin® Scorcher “Adventure”, Radial
  • Engine
    add remove
    • Engine
      Revolution® Max 1250
    • Bore
      4.1 in
    • Stroke
      2.8 in
    • Displacement
      76.40 in3
    • Compression ratio
      13.0:1
    • Fuel system
      Electronic Sequential Port Fuel Injection (ESPFI)
    • Exhaust
      2-into-1-into-1; catalyst in header
  • Performance
    add remove
    • Engine torque testing method
      J1349
    • Engine torque
      91.5 ft-lb
    • Engine torque (RPM)
      6750
    • Horsepower
      149 HP / 111 kW @ 8750 rpm
    • Lean angle, right (deg.)
      42
    • Lean angle, left (deg.)
      42
    • Fuel economy testing method
      Estimated City/Hwy
    • Fuel economy
      46 mpg (5.1 l/100 km)
  • Powertrain
    add remove
    • Primary drive
      Gear, 49/89 ratio
    • Gear ratios (overall) 1st
      13.11
    • Gear ratios (overall) 2nd
      9.687
    • Gear ratios (overall) 3rd
      7.509
    • Gear ratios (overall) 4th
      6.057
    • Gear ratios (overall) 5th
      5.08
    • Gear Ratios (overall) 6th
      4.436
  • Chassis
    add remove
    • Front fork
      47mm inverted fork with electronically adjustable semi-active damping control. Aluminum fork triple clamps

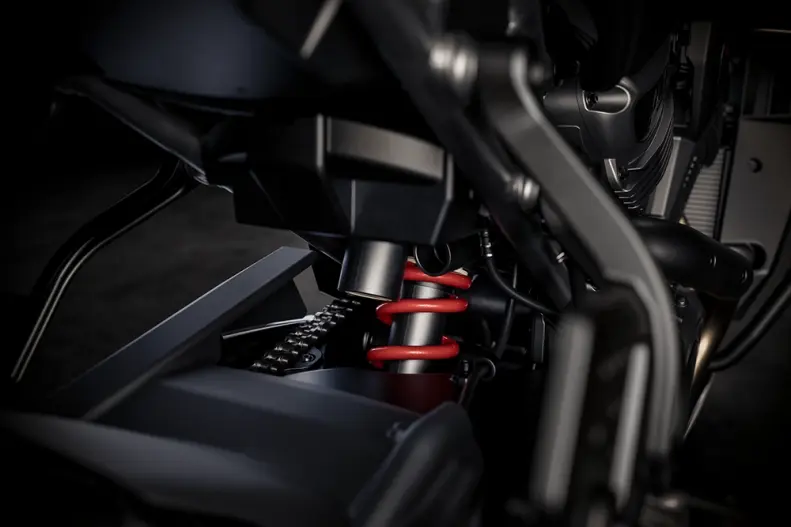

    • Rear shocks
      Linkage-mounted monoshock with automatic electronic preload control and semi-active compression & rebound damping
    • Wheels, optional style type
      Annodized aluminum tubeless laced

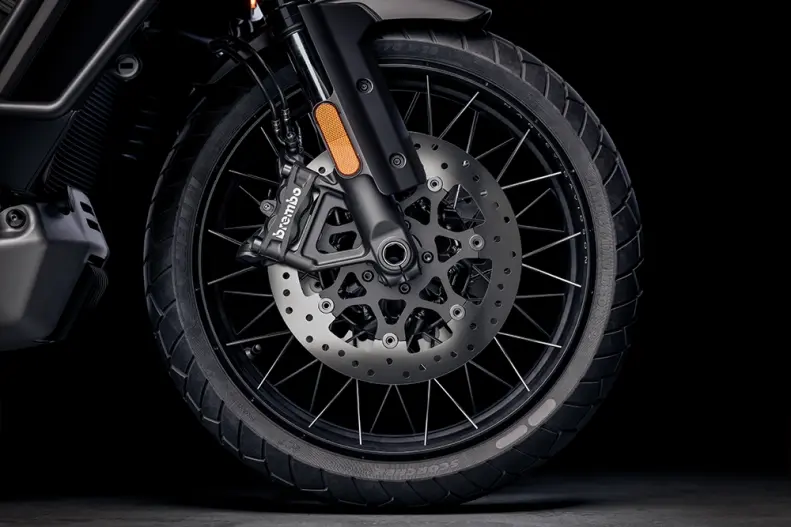

    • Wheels, front type
      Aluminum cast, satin black
    • Wheels, rear type
      Aluminum cast, satin black
    • Brakes, type
      Front: dual rotor, floating, tower- mounted; Rear: solid uniform expansion rotor
    • Brakes, caliper type
      Front: radially mounted, monoblock, 4-piston caliper; Rear: floating, single piston caliper
  • Infotainment
    add remove

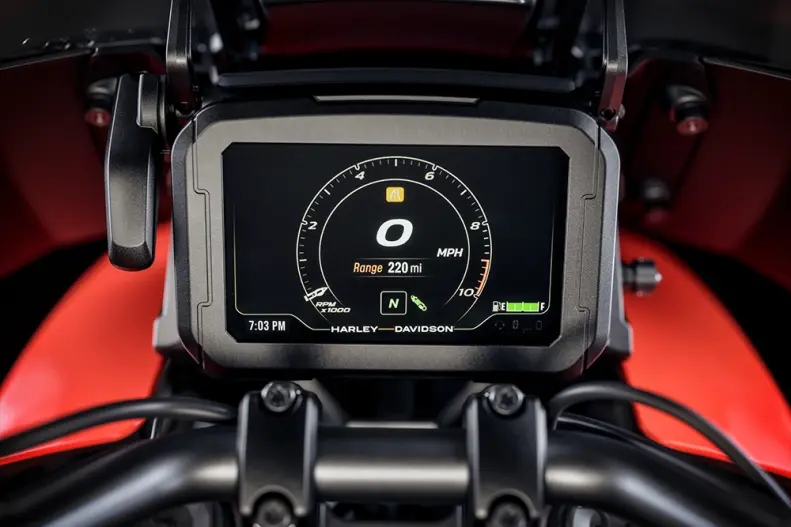

    • Type
      Color TFT w/ Touch
    • Headset specifications (if equipped)
      Bluetooth
    • Languages
      Arabic, Chinese (Simplified/Traditional), Czech, Danish, Dutch, English (default), Finnish, French (Canada/France), German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Portugal/Brazil), Indonesian, Russian, Slovak, Spanish (Mexico/Spain), Swedish, Thai, Turkish, Vietnamese
    • Hands-free mobile phone — via Bluetooth
      Standard
    • Voice Recognition Languages: Phone functions only
      Phone dependent
    • Voice Recognition Languages: Tuner / Media / Navigation
      Phone dependent
    • Text-to-Speech (TTS) languages
      Phone dependent
    • Rider / passenger intercom
      Headset function only
    • Vehicle information screen
      TPMS, Engine temp, Battery Voltage, Ambient Air Temp
    • USB
      Charging and Instrument update, USB-C, 5V, 3A
    • Bluetooth
      Phone/Media Supported
  • Color options
    add remove
    • Dark Billiard Gray Black Cast Wheels
    • Vivid Black Black Cast Wheels
    • Blood Orange Black Cast Wheels
    • Dark Billiard Gray Black Laced Wheels
    • Blood Orange Black Laced Wheels
    • Vivid Black Black Laced Wheels

1Vehicles depicted may differ from vehicles manufactured and delivered. Specifications and prices listed may differ from specifications and prices of vehicles manufactured and delivered. All product descriptions (including depictions, specifications, dimensions, measurements, ratings and competitive comparisons) are based on available information at the time of publication. Although such descriptions are believed correct, errors and changes can occur and complete accuracy cannot be guaranteed. Harley-Davidson may make changes at any time to prices and specifications, and may change or discontinue models, without notice and without incurring any obligation. Attention: Vehicles in the configurations shown and many of the accessories described in this catalog may not be available for sale or use in some locations. Please check with your dealer for complete product details and the latest information. All models feature 6-speed transmission (VRSC™ models and Sportster® models are 5-speed) and carbon fiber belt final drive; multi-plate clutch with diaphragm spring in oil bath; and 2-year unlimited mileage warranty.

3Recommended 91 octane or higher fuel (R+M)/2.

5Values shown are nominal. Performance may vary by country and region.

7Inspections of certain systems and components are required at 2,500 mile (4,000 km) intervals. See Owner’s Manual for full details.

9Limited availability. See your dealer for details and available colors.

11Freight price applies to the 48 contiguous states and Alaska only.12 Availability of colors may vary from dealer to dealer, and is subject to change without notice. Custom Color options have limited availability. See your dealer for details and available colors.
